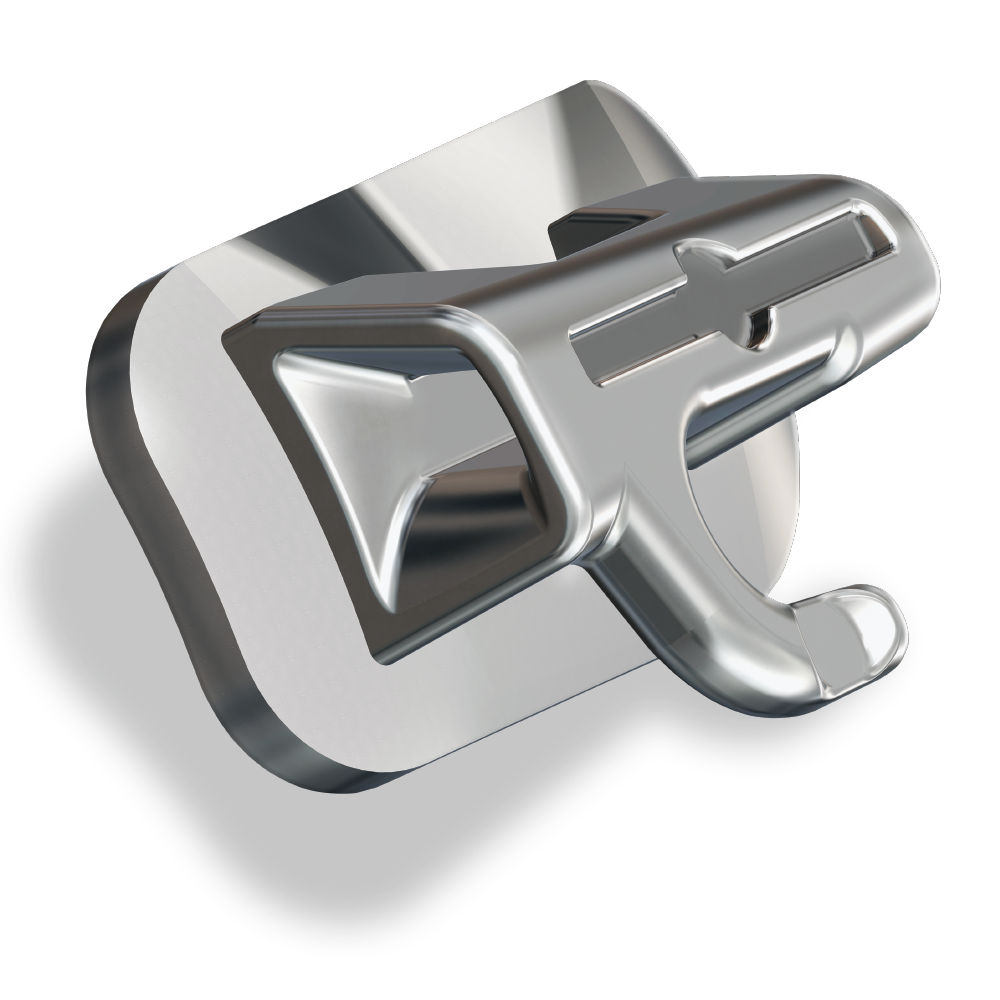

3M™ Victory Series™ Superior Fit Buccal Tubes
About the product
3M™ Victory Series™ Superior Fit Buccal Tubes are the next generation of the popular 3M™ Victory Series™ Buccal Tubes. They feature a low profile for outstanding patient comfort, improved gripping and handling during placement, a large compound contour base for ease of positioning and a "contoured funnel" design for easy archwire insertion.
| Product name and IDs | 3M ID | Overall Length (Imperial) | Overall Length (Metric) | Arch | Material | Side | SlotSizeImperial | Tooth | Hook Type | Adhesive Precoat | Prescription | Slot Size (Metric) | Industries | Brand | Tube Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7100267256 | 0.17 in | 4.3 mm | Lower | Stainless Steel | Right | 0.022 in | First Molar | Distal | APC™ II | Roth* | 0.559 mm | Orthodontics | Victory Series™ | Single Convertible |
|
|
7100267055 | 0.15 in | 3.7 mm | Lower | Stainless Steel | Right | 0.022 in | Second Molar | Distal | APC™ II | MBT™ | 0.559 mm | Orthodontics | Victory Series™ | Single Non-convertible |
|
|
7100267053 | 0.15 in | 3.7 mm | Lower | Stainless Steel | Left | 0.022 in | Second Molar | Distal | APC™ II | MBT™ | 0.559 mm | Orthodontics | Victory Series™ | Single Non-convertible |
|
|
7100267050 | 0.15 in | 3.7 mm | Lower | Stainless Steel | Left | 0.018 in | Second Molar | Distal | APC™ II | MBT™ | 0.457 mm | Orthodontics | Victory Series™ | Single Non-convertible |
|
|
7100267048 | 0.15 in | 3.7 mm | Upper | Stainless Steel | Right | 0.022 in | Second Molar | Distal | APC™ II | MBT™ | 0.559 mm | Orthodontics | Victory Series™ | Single Non-convertible |
Product details
- Large compound contour base for superior fit
- "Contoured funnel" design for easy wire insertion
- Sleek, low profile, tapered body and flush-mount hook for patient comfort
- Parallel mesial and distal surfaces for ease of gripping and handling
- Micro-etched, 80-gauge mesh pad for reliable bonding
Legal
*3M Unitek version of this prescription. No endorsement by the Doctor is implied.Product specifications
| Prescription |
Prescription
Roth*, MBT™ |
| Industries |
Industries
Orthodontics |
| Hook Type |
Hook Type
Distal |
| HookType |
HookType
Distal |
| OverallLengthImperial |
OverallLengthImperial
0.19 in |
| Category Name |
Category Name
Buccal Tubes |
| Arch |
Arch
Upper, Lower |
| Material |
Material
Stainless Steel |
| categoryName |
categoryName
Buccal Tubes |
| Side |
Side
Left, Right |
| Brand |
Brand
Victory Series™ |
| SlotSizeImperial |
SlotSizeImperial
0.018 in |
| Overall Length (Imperial) |
Overall Length (Imperial)
0.15 in, 0.19 in, 0.17 in |
| Slot Size (Imperial) |
Slot Size (Imperial)
0.018 in, 0.022 in |
| Overall Length (Metric) |
Overall Length (Metric)
3.7 mm, 4.7 mm, 4.3 mm |
| Slot Size (Metric) |
Slot Size (Metric)
0.457 mm, 0.559 mm |
| Adhesive Precoat |
Adhesive Precoat
Non-coated, APC™ II |
| Tooth |
Tooth
Second Molar, First Molar |
| Trademark2 |
Trademark2
Victory Series™ |
| AdhesivePrecoat |
AdhesivePrecoat
Non-coated |
| Tube Style |
Tube Style
Single Non-convertible, Double Convertible, Single Convertible |
