We solve the challenges of process intensification and loading capacity

Protein purification has significant downstream effects, particularly when moving from lab to production, and can be challenging to scale while intensifying the process and achieving high loading capacity. Solventum brings innovative solutions to AEX polishing unit operations that incorporate both a Q-functionalised fibrous non-woven and an innovative guanidinium-functionalised membrane, which combined provide robust viral clearance and host cell protein reduction. Operating across a wide range of conditions, 3M™ Polisher ST allows you to do more with less. It’s also available for easy trialling, so our experts can show you how to optimise your process to address your manufacturing challenges.

Man in cleanroom suit loads product into holder

Simplified, intensified, time and cost-efficient purification

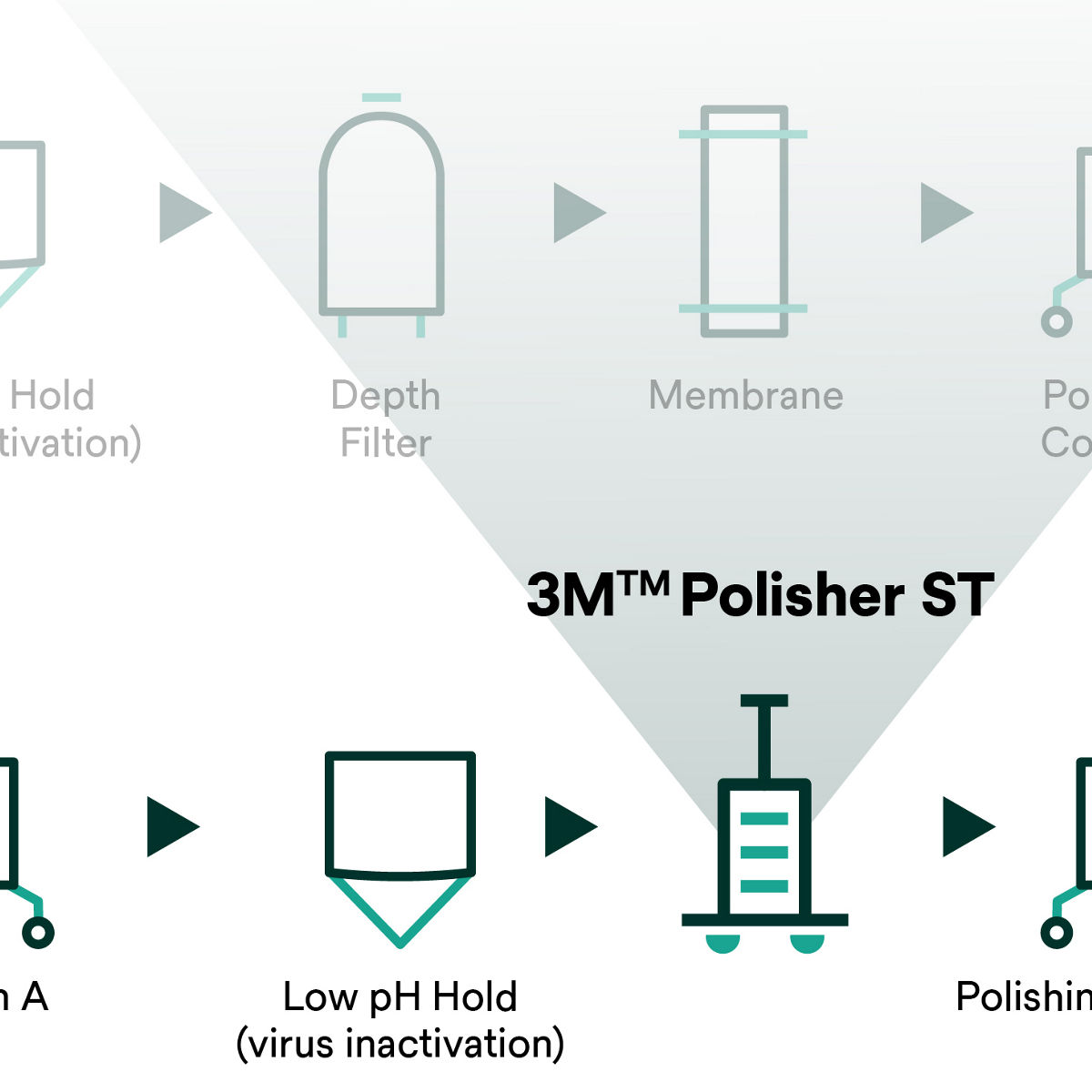

3M™ Polisher ST can replace multiple steps downstream

With its proprietary technology that enhances mAb recovery and viral clearance with marked reductions in HCPs, the 3M™ Polisher ST can help you simplify your process and replace multiple steps. Our global experts can help you determine the right product for your process, helping you save time and money as you compress purification and contaminant removal into a single step.

One scientist’s hand holding two vials while another points at the contents.

Reach full-scale production, faster

Enhancing the efficiency of your downstream process (DSP), the 3M™ Polisher ST will help your innovations move from concept to full-scale production — quickly. It is a synthetic, fully encapsulated single-use AEX device that contains two complementary AEX-functionalised media including one with a novel guanidinium ligand. These innovative materials enhance your high productivity chromatographic purification processes, potentially leading to increased yields, higher purity, and process intensification, all in a cost-effective and compact solution that is available in lab scale for easy trialing.

One scientist’s hand holding two vials while another points at the contents.

Increase the yield and purity of your process

By intensifying the polishing step, 3M™ Polisher ST eliminates the need for depth and membrane filters downstream. Enhanced viral clearance, increased mAb recovery and marked reductions in host cell protein have been independently verified in a range of operating conditions — by professionals like you. 3M™ Polisher ST is the result of our dedication to and proven expertise in membrane science for chromatography in manufacturing.

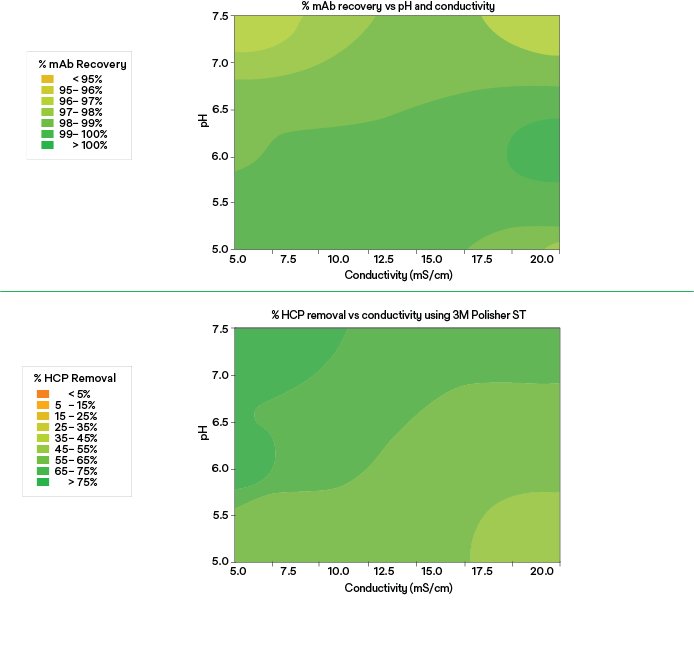

Graphic showing HCP reduction and mAb recovery contour plots

A solution for your efficiency and sustainability goals

Greater yield per batch means you can achieve your target production with fewer batches—or higher output with the same number of batches. All while reducing costs. In a case study, 3M™ Polisher ST on its own was estimated to increase annual production capacity by 12%, while reducing the cost of goods sold by 13%. It was also estimated to reduce facility energy use by 3% and facility energy intensity by 13%.

Process intensification requires less floor space and less energy consumption, with corresponding decreases in greenhouse gas emissions. 3M™ Polisher ST alone can provide a reduction in energy use.

Even greater efficiencies are possible with other Solventum solutions in your process.

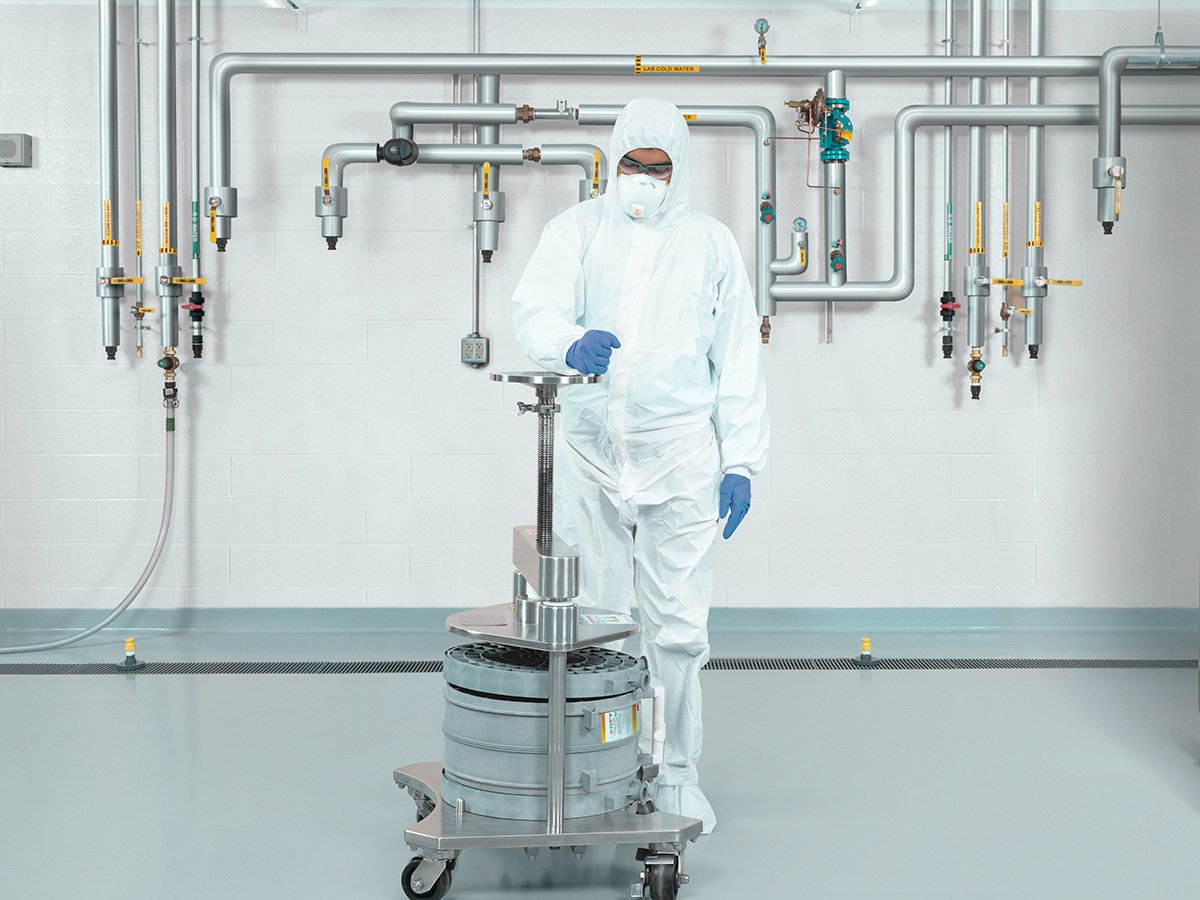

Bioprocessing technician setting up a pilot scale product holder and capsules

AEX technology

Think beyond quaternary ammonium (“Q”) functional media in your downstream polishing operation. The 3M™ Polisher ST has that - and more. With two complementary AEX-functional media in a single device, it has greater capacity and delivers higher purity and yield to your downstream polishing operation.

Functionalised AEX membrane

Superior performance is achieved with the addition of three layers of a polyamide microporous membrane that have been AEX functionalised with a covalently attached guanidinium-functional polymer. Downstream of Q-functional media and with a nominal 0.8 µm pore size, the result is robust HCP and viral reduction.

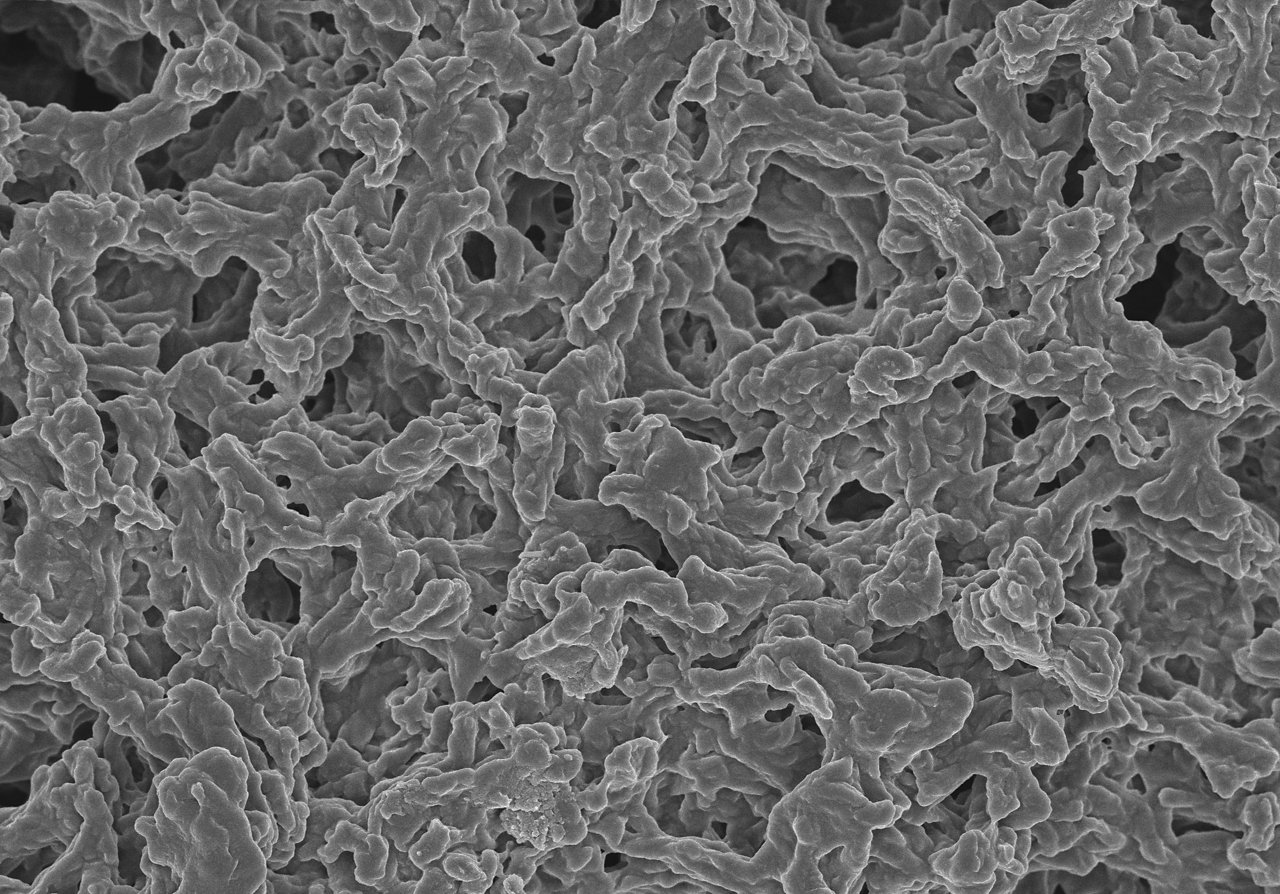

Microscopic image of membrane

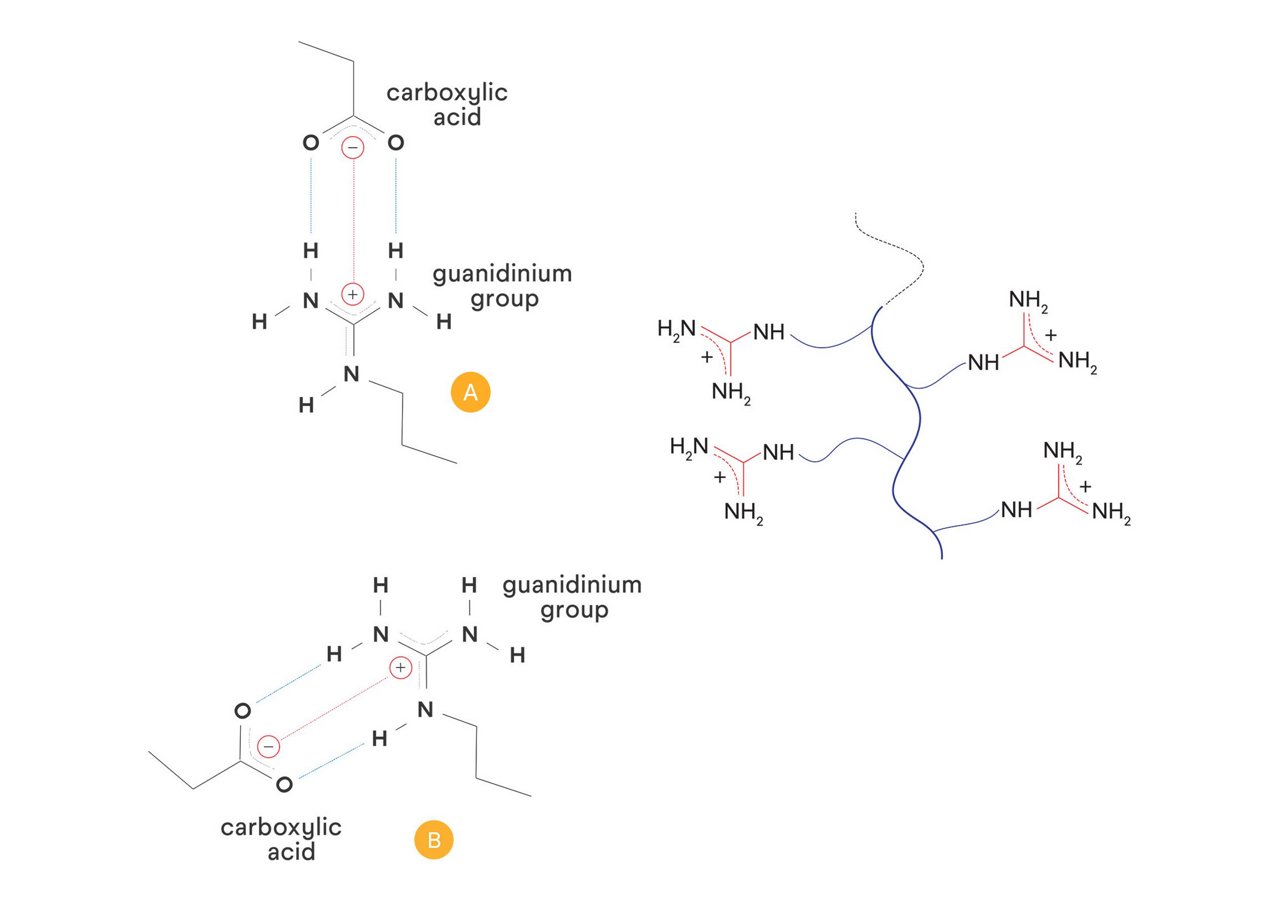

Novel guanidinium ligand

The novel guanidinium ligand mimics the positively charged amino acid, arginine. It interacts with negatively charged impurities in a salt-tolerant manner, both electrostatically and with two hydrogen bonds. The high ligand density enables 50-100x higher mAb loading capacity than traditional chromatography resin beads.

Line art illustration of guanidinium ligand

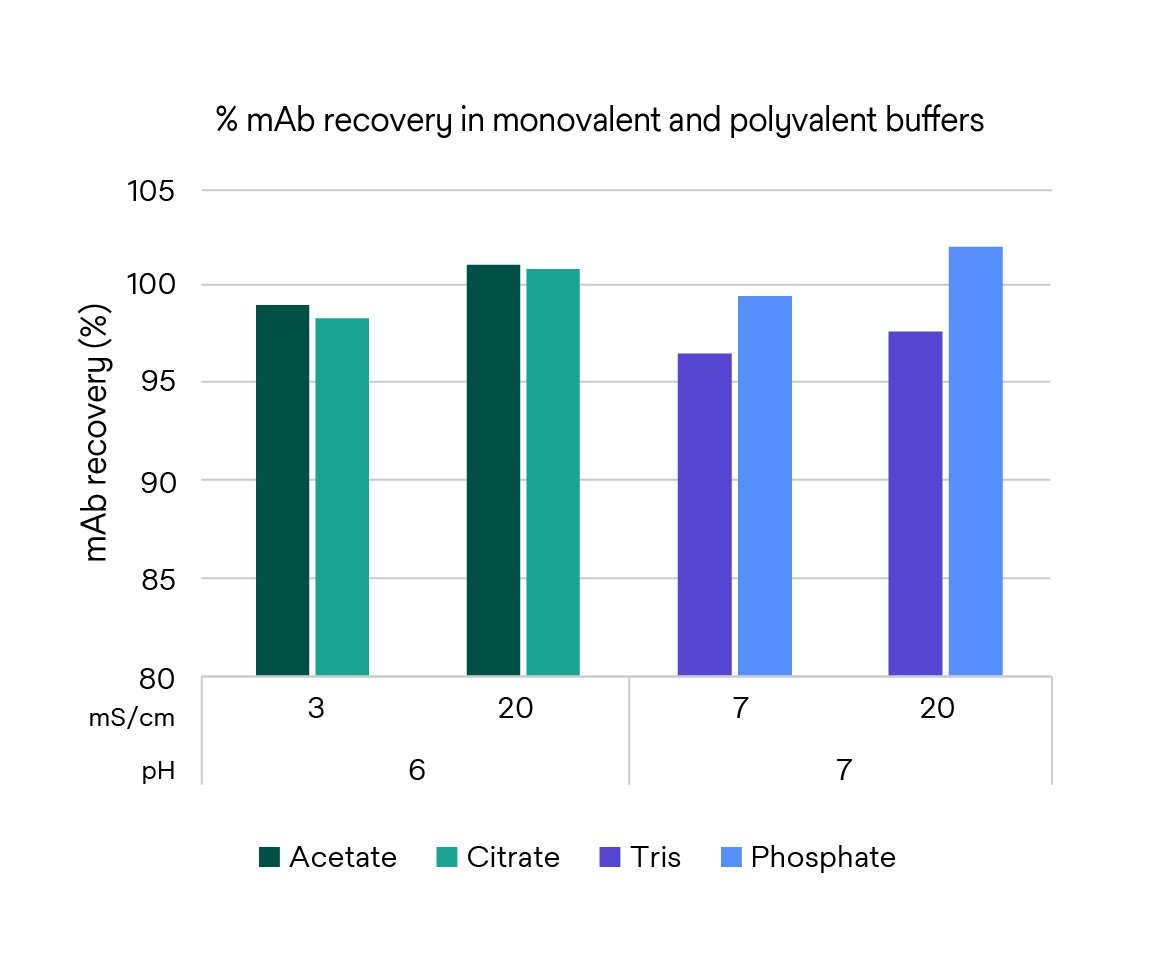

mAb recovery

3M™ Polisher ST has robust mAb recovery. It can achieve >95% recovery in monovalent or polyvalent buffers, irrespective of pH (from 5.0 to 7.5) and conductivity (from <5.0 mS/cm to 20 mS/cm).

Bar graph depicting % mAb recovery in monovalent and polyvalent buffers

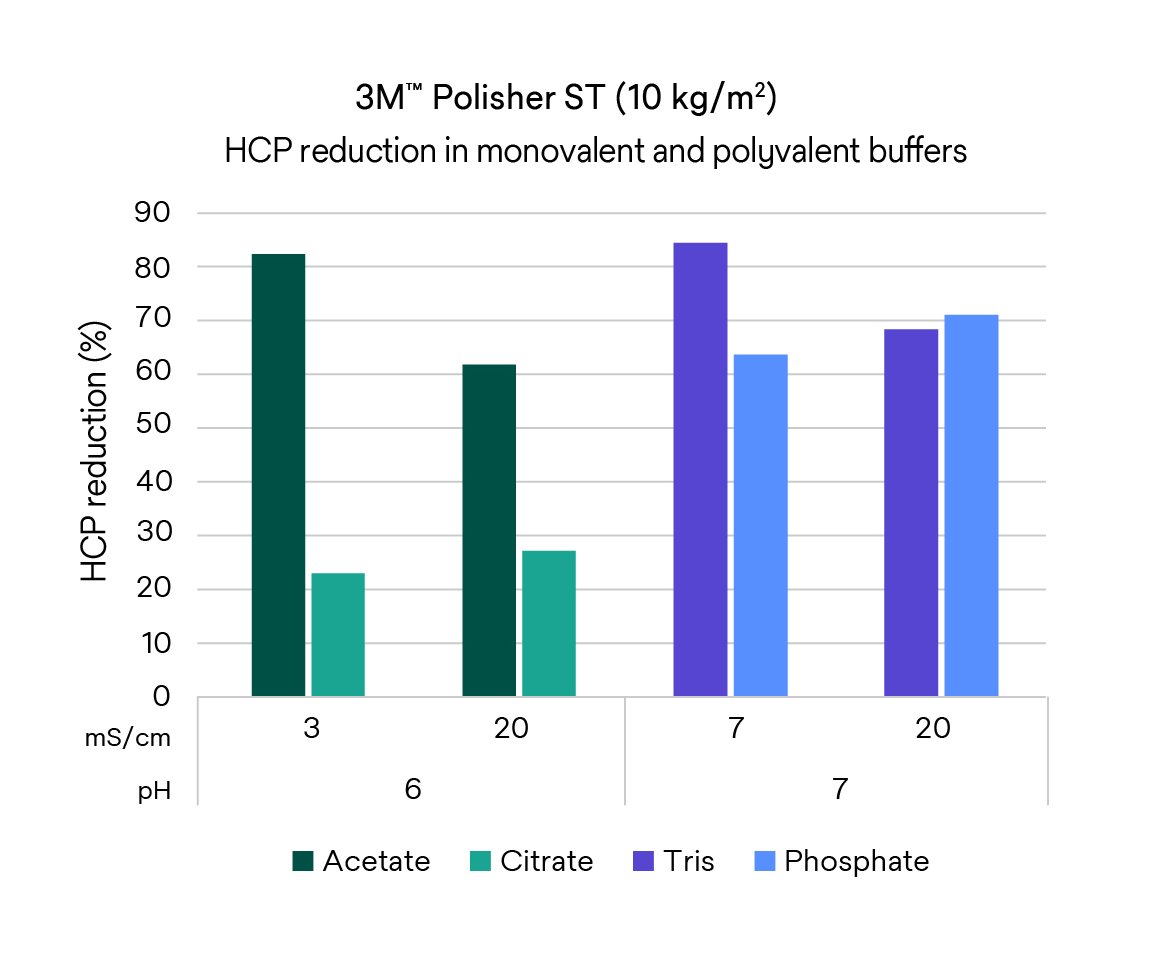

HCP reduction

With high dynamic antibody-loading capacities (10 kg/m2) and one-fifth the residence time of Q-resin, 3M™ Polisher ST achieves >60% HCP removal in a phosphate buffer and >22% removal in a citrate buffer in a VIN mAb pool with ~500 ppm HCP.

Bar graph depicting HCP reduction in monovalent and polyvalent buffers

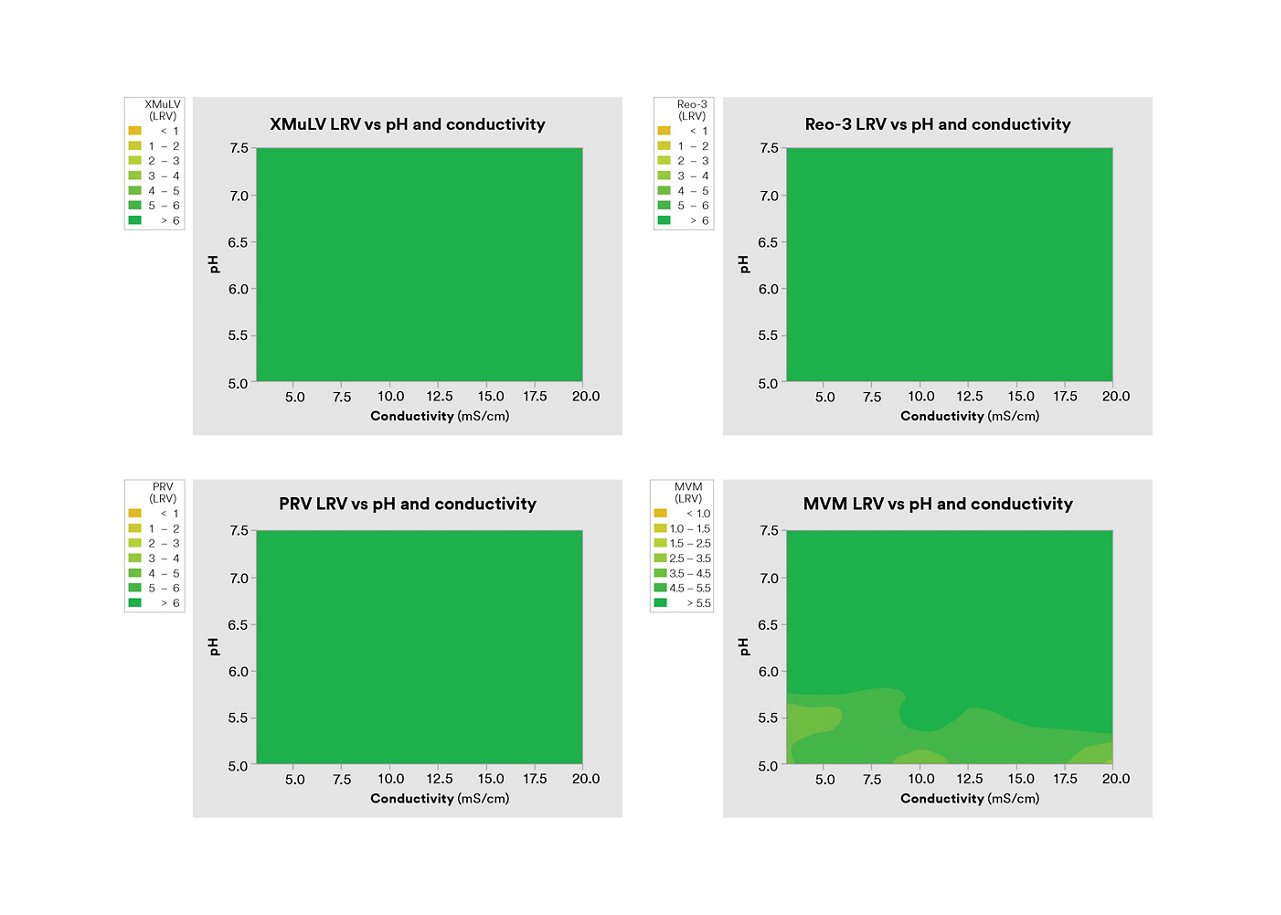

Viral clearance

Under process conditions of 5 to 20 mS/cm and a pH 5.5 to 7.5, 4 to 7 LRV can be achieved using 3M™ Polisher ST. For XMuLV, Reo-3 and PrV, >6 LRV was seen, and >4 LRV for MVM.

Bar graph depicting BSA DBC at 10% Breakthrough

Scalability

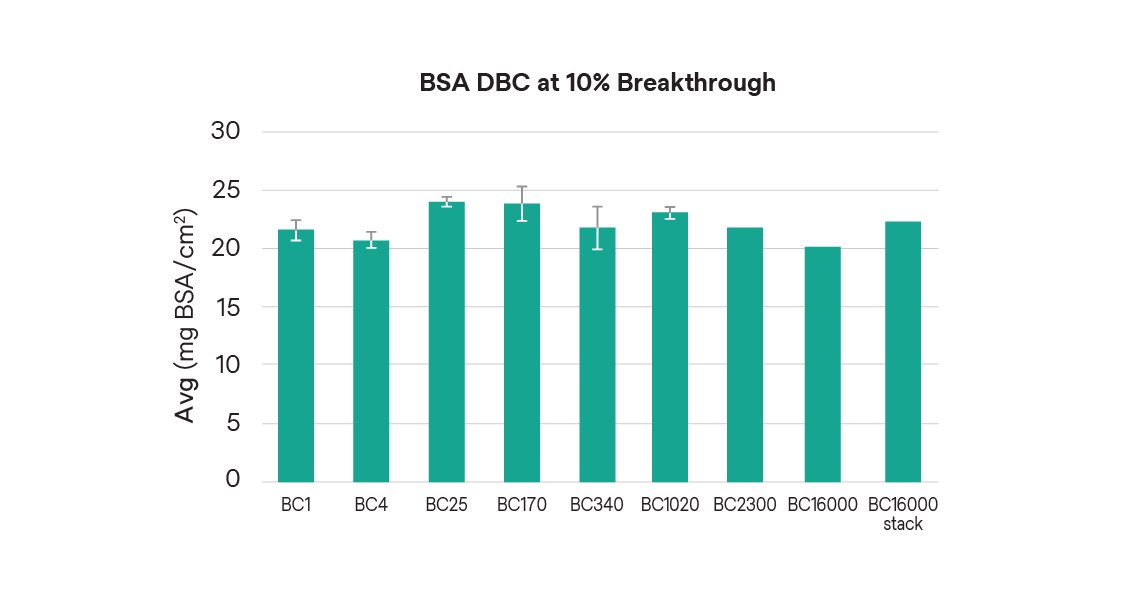

3M™ Polisher ST can help bring your innovations from bench to market. 3M™ Polisher ST lab and scale-up capsules have target mAb loading capacities ranging from 1 g to 1 kg. The bovine serum albumin (BSA) protein dynamic binding capacity (DBC) per unit area was consistent across all capsule sizes.

Bar chart illustrating BSA DBC at 10% Breakthrough
