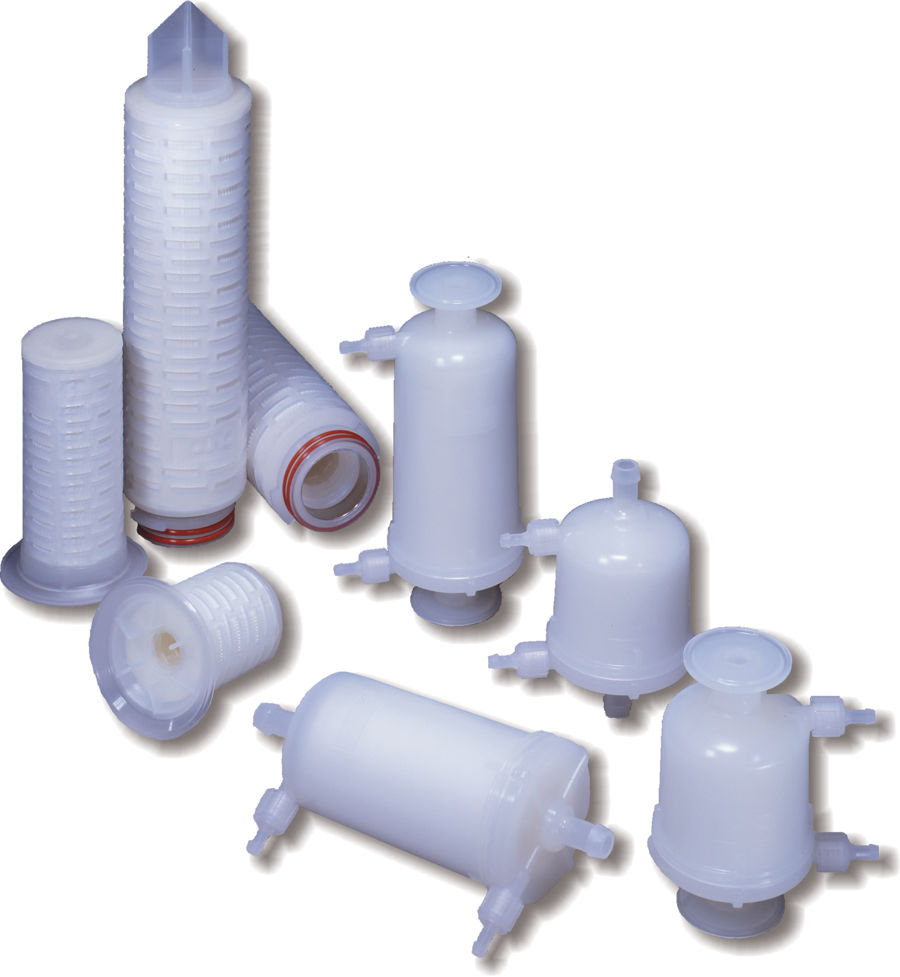

3M™ LifeASSURE™ PLA Series Filter Capsule
About the product
Our LifeASSURE™ PLA Series Filter Capsules encompass two important design elements— multi‐zone microporous membrane and Advanced Pleat Technology — to offer prefiltration protection of final membrane filters. These filters have applications in prefiltration and clarification in the pharmaceutical, biological and bioprocess industries.
Product Details
Multi-zone Microporus Membrane Construction
We incorporate our multi‐zone microporous membrane technology into our LifeASSURE™ PLA Series filter capsules. This technology allows great flexibility in creating a multi‐zone membrane that offers excellent contaminant holding capacity while maintaining high retention efficiency. LifeASSURE™ PLA series filter membrane consists of an "open inch zone on the upstream side of the membrane and a "tighter inch zone on the downstream side. In effect, the open zone acts as a prefilter by capturing larger particles and colloids.
Advanced Pleat Technology Design
LifeASSURE™ PLA Series filter capsules also feature our Advanced Pleat Technology (APT) design for extended service life. This design technology is intended to increase the useful surface area while maintaining open flow paths between media pleats.
Performance Engineered for Quality and Reliability
We manufacture LifeASSURE™ PLA Series filter capsules using all polypropylene structural components (end caps, adapters, media support, inner core and outer cage). The 3M Purification Inc. Quality Management System is approved by an accredited registering body to the ISO 9001:2008 Quality Management Systems, and the cartridges are 100% forward flow integrity tested prior to shipment. All LifeASSURE PLA Series filters are shipped with a Certificate of Quality affirming compliance with manufacturing quality specifications. Supporting Drug Master File (DMF) documentation is on file with the United States Food and Drug Administration (FDA).
- Multi-zone microporous nylon membrane offers maximum membrane protection and increased contaminant capacity
- Advanced Pleat Technology construction allows maximum fluid and contaminant access to filter surface area for highest throughput
- 100% Integrity tested prior to release ensures consistent performance to specification
Product Specifications
| Industries |
Industries
Biopharmaceutical manufacturing |
| Brand |
Brand
LifeASSURE™ |
| Overall Length (Imperial) |
Overall Length (Imperial)
5.0000, 2.5000, 30.0000, 10.0000, 20.0000 |
| Overall Length (Metric) |
Overall Length (Metric)
12.7000, 6.3500, 76.2000, 25.4000, 50.8000 |
| Filter Technology |
Filter Technology
Membrane |
| End Modification |
End Modification
Hose Barb, Sanitary Flange, 10" 0.65UM SANT. SLCNE, 10" 0.8UM SANT. SLCNE, 20" 0.45UM SANT. SLCNE, 20" 0.8UM SANT. SLCNE, 30" 0.2UM SANT. SLCNE, 30" 0.45UM SANT. SLCNE, 30" 0.65UM SANT. SLCNE, 30" 0.8UM SANT. SLCNE |
| Micron Rating |
Micron Rating
0.2000, 0.4500, 0.8000, 0.6500 |
| Grade |
Grade
Pharmaceutical & Biological, 0.8 micron, 0.45 micron |
| Filter Type |
Filter Type
Surface |
| Product Series |
Product Series
PLA |
| Application |
Application
SterileFiltration |
