3M™ Harvest RC Centrate Chromatographic Clarifier

5 Products Available

Hover over image to zoom

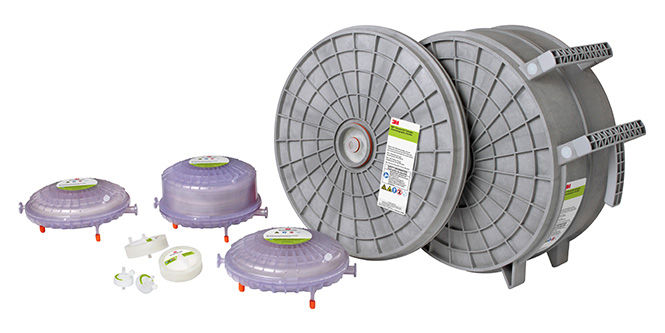

3M™ Harvest RC Centrate Chromatographic Clarifier
Harvest RC Centrate - PDP Secondary Image 3
Harvest RC Centrate - PDP Secondary Image 2
Harvest RC Centrate - PDP Secondary Image 5
Harvest RC Centrate - PDP Secondary Image 1
Harvest RC Centrate - PDP Secondary Image 6
Harvest RC Centrate - PDP Secondary Image 4

About the product

Designed to effectively clarify Chinese Hamster Ovary (CHO) cell culture centrates produced by conventional and single-use conical plate (e.g., disc stack) centrifuges, 3M™ Harvest RC Centrate Chromatographic Clarifier is a single-stage chromatography solution that employs a synthetic fibrous anion exchange (AEX) Q-functional chromatography media to enable product recoveries of >95% and cell shear-related impurity reduction.

Product Options

1-5 of 5 Products

Select Filters to narrow your product list

Product name and IDs 3M ID Overall Diameter (Imperial) Overall Diameter (Metric) End Modification Micron Rating Flow Rate (Imperial) Overall Height (Imperial) Overall Height (Metric) Flow Rate (Metric) Filter Type Net Weight (Metric) Application Filter Technology Industries Product Series

3M ID

7100326416

Overall Diameter (Imperial)

3.0300 INCH

Overall Diameter (Metric)

7.7000 CENTIMETER

End Modification

3/4" Sanitary

Micron Rating

0.2000 MICROMETER

Flow Rate (Imperial)

0.0010 GALLON_PER_MINUTE

Overall Height (Imperial)

3.3900 INCH

Overall Height (Metric)

8.6000 CENTIMETER

Flow Rate (Metric)

4.2000 MILLILITER_PER_MINUTE

Filter Type

Single Use

Net Weight (Metric)

75.8000 GRAM

Application

Harvest and clarification

Filter Technology

Anion exchange chromatography

Industries

Biopharmaceutical manufacturing

Product Series

Harvest RC

3M ID

7100290390

Overall Diameter (Imperial)

17.8000 INCH

Overall Diameter (Metric)

45.2000 CENTIMETER

End Modification

1-1/2" Sanitary

Micron Rating

0.2000 MICROMETER

Flow Rate (Imperial)

-

Overall Height (Imperial)

7.9900 INCH

Overall Height (Metric)

20.3000 CENTIMETER

Flow Rate (Metric)

-

Filter Type

Single Use

Net Weight (Metric)

9.8000 KILOGRAM

Application

Harvest and clarification

Filter Technology

Anion exchange chromatography

Industries

Biopharmaceutical manufacturing

Product Series

Harvest RC

3M ID

7100290389

Overall Diameter (Imperial)

9.4900 INCH

Overall Diameter (Metric)

24.1000 CENTIMETER

End Modification

3/4" Sanitary

Micron Rating

0.2000 MICROMETER

Flow Rate (Imperial)

-

Overall Height (Imperial)

5.9800 INCH

Overall Height (Metric)

15.2000 CENTIMETER

Flow Rate (Metric)

-

Filter Type

Single Use

Net Weight (Metric)

1.6000 KILOGRAM

Application

Harvest and clarification

Filter Technology

Anion exchange chromatography

Industries

Biopharmaceutical manufacturing

Product Series

Harvest RC

3M ID

7100290388

Overall Diameter (Imperial)

17.8000 INCH

Overall Diameter (Metric)

45.2000 CENTIMETER

End Modification

1-1/2" Sanitary

Micron Rating

0.2000 MICROMETER

Flow Rate (Imperial)

-

Overall Height (Imperial)

2.2400 INCH

Overall Height (Metric)

5.7000 CENTIMETER

Flow Rate (Metric)

-

Filter Type

Single Use

Net Weight (Metric)

3.4000 KILOGRAM

Application

Harvest and clarification

Filter Technology

Anion exchange chromatography

Industries

Biopharmaceutical manufacturing

Product Series

Harvest RC

3M ID

7100290387

Overall Diameter (Imperial)

3.0300 INCH

Overall Diameter (Metric)

7.7000 CENTIMETER

End Modification

3/4" Sanitary

Micron Rating

0.2000 MICROMETER

Flow Rate (Imperial)

-

Overall Height (Imperial)

3.3900 INCH

Overall Height (Metric)

8.6000 CENTIMETER

Flow Rate (Metric)

-

Filter Type

Single Use

Net Weight (Metric)

75.8000 GRAM

Application

Harvest and clarification

Filter Technology

Anion exchange chromatography

Industries

Biopharmaceutical manufacturing

Product Series

Harvest RC

Product Details

Single-stage chromatographic clarification for centrate in recombinant protein therapeutic manufacturing

Single-stage chromatographic clarification for centrate in recombinant protein therapeutic manufacturing
3M™ Harvest RC Centrate Chromatographic Clarifier encapsulates innovative synthetic fibrous AEX Q-functional chromatography media combined with an asymmetric Q-functional polyamide membrane with a 0.2 µm qualifying zone. This enables effective single-stage clarification of CHO cell culture centrates produced by conventional and single-use conical plate (e.g., disc stack) centrifuges. Electrostatic interactions with a positively charged ligand immobilized on a fiber matrix and a downstream polyamide membrane capture soluble and insoluble impurities, resulting in efficient retention of a wide range of particles that have not been effectively separated by centrifugation or are produced by cell shear during centrifugation. Specifically, the AEX mechanism enables efficient capture of impurities <0.5 µm that are difficult to capture with traditional depth filtration and membrane filtration.
Cleaner centrate for an improved downstream process
mAb product recovery

mAb product recovery

The innovative synthetic fibrous AEX chromatographic clarification media of 3M™ Harvest RC Centrate Chromatographic Clarifier effectively clarifies CHO cell culture centrates produced by conventional and single-use conical plate (e.g., disc stack) centrifuges. The single-mode electrostatic separation mechanism and high throughput media enables product recoveries of >95%.

Cell shear-related impurity reduction

Cell shear-related impurity reduction

Achieve high quality and consistent clarified centrate using 3M™ Harvest RC Centrate Chromatographic Clarifier for CHO cell culture centrate. The clarified centrate has low turbidity (<15 NTU), low DNA (< 500 ppb) and the ability to protect a downstream sterile filter (>500 L/m2 for 0.1 μm filter).

Scalability

Scalability

From lab to manufacturing scale devices, 3M™ Harvest RC Centrate Chromatographic Clarifier provides a predictable and scalable solution aligned to process workflows.

The innovative synthetic fibrous AEX chromatographic clarification media enables a single-stage centrate clarification from CHO cell cultures with high product recovery and high fidelity of soluble and insoluble impurity removal. The 0.2 µm asymmetric Q-functional polyamide membrane, which is downstream of the fibrous chromatographic clarification media, distributes the flow across the AEX media bed and enables the protection of the downstream sterilizing grade membrane filter. Also, the 0.2 µm functionalized polyamide membrane enables simple process endpoint measurement using pressure reading.
Clarify centrate like never before
Separation by charge

Separation by charge

Consisting of a range of high-capacity, single-use synthetic chromatographic clarification products that separate by charge, the 3M™ Harvest RC Centrate Chromatographic Clarifier was designed with a fiber chromatography media to effectively capture cell shear-related insoluble impurities in the submicron size range that are typically present in centrate feed streams.

Particle size control

Particle size control

3M™ Harvest RC Centrate Chromatographic Clarifier provides effective reduction of a wide range of particle sizes that are typically present in centrate feed streams. The fiber chromatography technology is highly effective at capturing the population of <0.5 µm particles that are difficult to remove using traditional depth filtration.

Robust sterile membrane filter protection

Robust sterile membrane filter protection

Due to the highly effective chromatographic reduction of soluble and insoluble impurities, 3M™ Harvest RC Centrate Chromatographic Clarifier enables efficient centrate clarification. This allows the effective protection of the final sterilizing grade membrane filter down to 0.1 µm pore size.

Resisting clarification stage particle breakthrough

Resisting clarification stage particle breakthrough

The Q-functionalized fibrous media and membrane of the 3M™ Harvest RC Centrate Chromatographic Clarifier can prevent particle breakthrough, which can impact membrane filter performance. With wet-laid media present in depth filters, particle breakthrough can occur, creating pressure buildup across the membrane filter stage, which destabilizes the clarification process.

  • Single-stage centrate clarification for process compression and streamlining of process development.
  • Enables de-risking of clarification process development, scale-up and tech transfer for faster speed to market.
  • Synthetic, functionalized fibrous media provides effective soluble impurity removal in centrate, including DNA and cell shear-related submicron particle reduction.
  • Predictable performance scalability for consistent centrate clarification at various process scales.
  • The single-mode electrostatic separation mechanism and high-throughput media enable product recoveries of >95%.
  • Provides comparable effluent quality to 3M™ Harvest RC Chromatographic Clarifier for a modern clarification platform.
  • Lower consumption of buffer or water compared to depth filtration.
  • Alkaline-resistant capsules for pre-use sanitization.

Suggested Applications

  • BC170, BC340, BC1020, BC2300 and BC18400: Biopharmaceutical processing applications of aqueous-based pharmaceuticals (drugs) and vaccines in accordance with the product instructions and specifications and cGMP requirements, where applicable.
  • BC4 and BC25: Biopharmaceutical processing applications of aqueous-based pharmaceuticals (drugs) and vaccines in accordance with the product instructions and specifications and GLP requirements, where applicable.

Product Specifications

Industries
Industries

Biopharmaceutical manufacturing

Net Weight (Metric)
Net Weight (Metric)

75.8000, 1.1000, 1.6000, 14.3000, 3.4000, 9.8000

Filter Technology
Filter Technology

Anion exchange chromatography

Micron Rating
Micron Rating

0.2000

Product Series
Product Series

Harvest RC

Flow Rate (Metric)
Flow Rate (Metric)

4.2000

Flow Rate (Imperial)
Flow Rate (Imperial)

0.0010

Overall Height (Imperial)
Overall Height (Imperial)

3.3900, 2.2400, 2.3200, 4.0900, 5.9800, 7.9900

Overall Diameter (Imperial)
Overall Diameter (Imperial)

17.8000, 3.0300, 9.4900, 1.6900

Overall Diameter (Metric)
Overall Diameter (Metric)

24.1000, 45.2000, 7.7000, 4.3000

End Modification
End Modification

3/4" Sanitary, 1-1/2" Sanitary, Luer-Lok

Filter Type
Filter Type

Single Use

Application
Application

HarvestAndClarification

Overall Height (Metric)
Overall Height (Metric)

8.6000, 10.4000, 15.2000, 20.3000, 5.7000, 5.9000
