Clinical Case: Restoring Worn Teeth and Closing Black Triangles Using the Bioclear Method
April 5, 2023 | Dr. Jose Roberto Santana de Moura Jr.
About the Case
A 48-year-old male, in pre-treatment for oral rehabilitation, presented with black spaces, a high degree of wear on his mandibular incisal edges, and non-carious cervical lesions. Using the Bioclear™ Method in combination with 3M Restorative Materials, it was possible to restore this case in a single office visit. This approach provides a simple, fast, predictable and non-invasive solution for what would have otherwise been a very difficult clinical challenge.
After biofilm removal, the Bioclear™ Black Triangle Gauge was used to determine which color-coded matrix to choose.

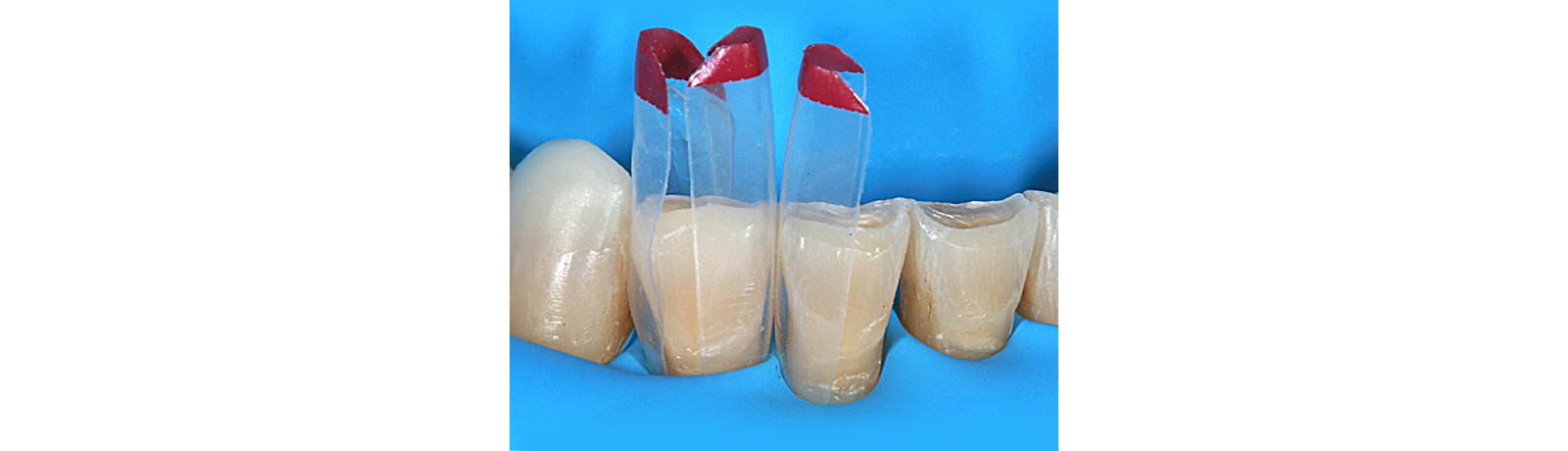

Color-coded matrices were selected to correspond to the Black Triangle Gauge and seated sub-gingivally.
The teeth were etched with 3M™ Scotchbond™ Universal Etchant with the Bioclear™ Matrices in place.
3M™ Scotchbond™ Universal Adhesive was applied, rubbed for 20 seconds, air dried for 5 seconds, and light cured for 10 seconds.
After a second layer of uncured adhesive was placed, 3M™ Filtek™ Supreme Flowable Restorative, shade A2, was injected into the contours of the matrix but not light cured.
3M™ Filtek™ Universal Restorative was added using the injection molding technique and light cured.
After using a spatula to shape the restoration within the matrix, the composite was light cured from the facial, incisal and lingual surfaces and the matrices were removed.
Excess composite was removed with a fine diamond bur.
The composite was finished and polished using 3M™ Sof-Lex™ Contouring and Polishing Discs.
Final results.
Refer to Instructions for Use (IFU) for complete product information. Results may vary.
