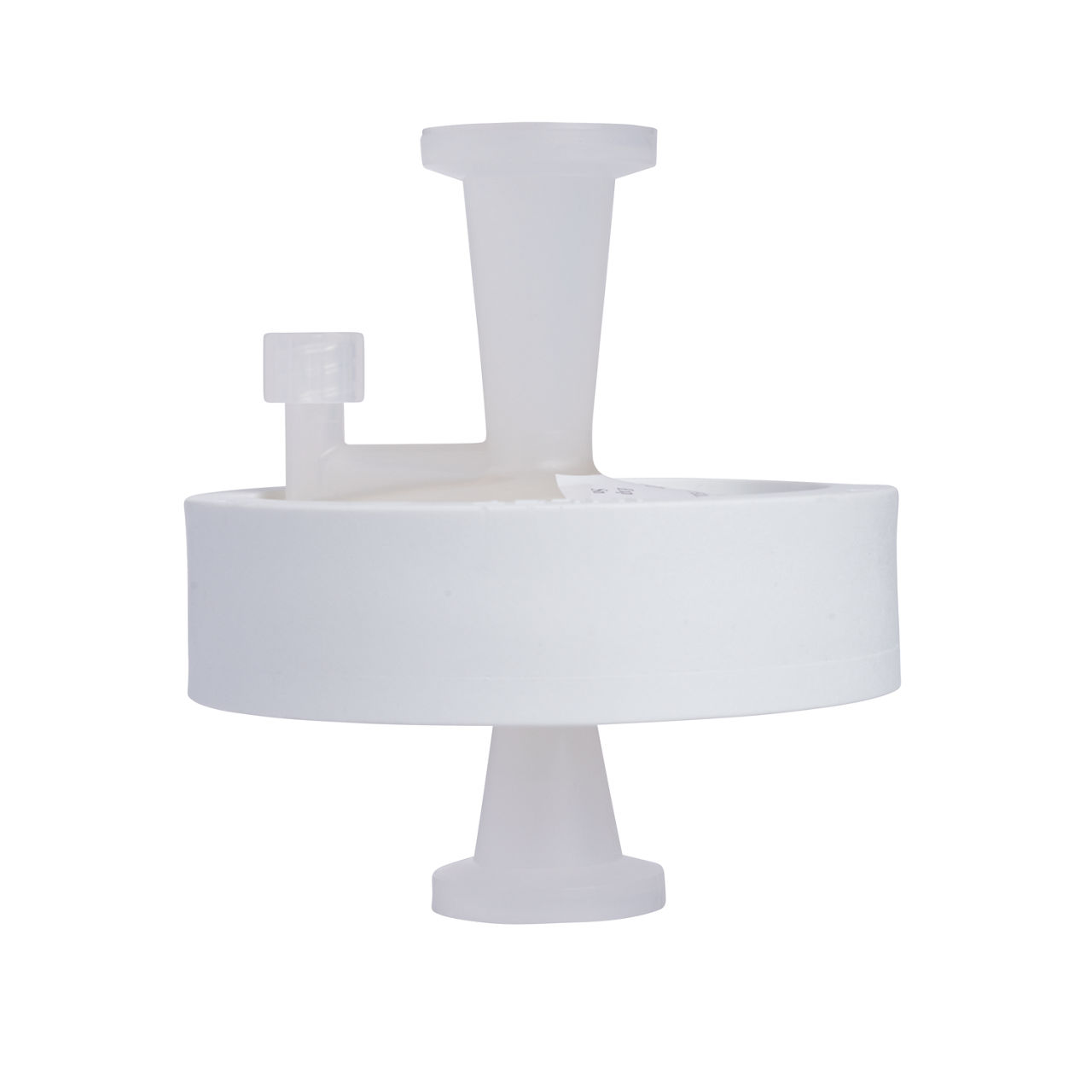

3M™ Zeta Plus™ BC Series Encapsulated Disposable Filter Capsule BC0025S50LP, 25 sq cm, EFA, Sanitary, 4/Case

Hover over image to zoom

Hover over image to zoom

Hover over image to zoom

3M™ Zeta Plus™ BC Series Encapsulated Disposable Filter Capsule BC0025S50LP, 25 sq cm, EFA, Sanitary, 4/Case
Print
3M Zeta Plus BC0025S90ZB08A

About the product

We designed the 3M™ Zeta Plus™ BC Series Filter Capsules with LP Series Media for manufacturing of biological products and have a reduced potential of yielding false positives in drug product endotoxin testing resulting from 1,3 Beta-glucan interference in LAL assays. Using the same media, BC25 Laboratory capsules are ideal for assessing filtration media grades using low challenge fluid volumes.

  • Overall Diameter (Imperial) : 2.63
  • Overall Diameter (Metric) : 66.8
  • End Modification : Sanitary Fitting
  • Filter Type : Depth
  • Grade : 50LP
  • Application : Harvest and clarification
  • Filter Technology : Adsorbent
  • Industries : Biopharmaceutical manufacturing
  • Product Series : BC
  • Brand : Zeta Plus™

Product details

Our 3M™ Zeta Plus™ LP Series filter media comprises of a mixture of high surface area inorganic particles, cellulose, and a positively charged crosslinking polymer. Designed for relatively low organic extractable levels by aggressively extracting the cellulose fibers. The combination of filtration efficiency and throughput results from the balance between porosity, depth, and the relatively low level anion exchange capacity: removing some negatively charged soluble contaminants and sub-micron particles via anion exchange, and larger particles by mechanical sieving.

Our BC25 laboratory capsule is ideal for optimizing the filtration performance for each drug process by effectively screening the available single layer media options. A scalable range of cartridges enables predictable performance at every stage of drug development from early stage discovery to commercial production.

Pharmaceutical Grade Product

We designed the Zeta Plus LP Series media for use in blood fractionation and biological applications. The effluent characteristics of the Zeta Plus LP Series filter media has been tested following a number of protocols contained in the United States Pharmacopeia (USP) compendia. All components of construction including the filtration media have been tested to demonstrate compliance to USP <88> Class VI Biological Reactivity, in-vivo. These results are documented in an available Regulatory Support File.

The Zeta Plus LP Series media has a reduced potential of yielding false positives in product endotoxin testing resulting from 1,3 Beta-glucan interference in LAL (Endotoxin) assays.

Scalable Single-use Capsules

The BC25 laboratory capsule with 25 cm2 filter media is ideal for media grade screening using small liquid volumes.

Filter cartridges and sanitary housings are available in 8 inch, 12 inch, and 16 inch diameters, with surface areas ranging from 650 cm2 to 3.9 m2 per cartridge, enabling predictable scale-up and full scale production.

  • 3M™ Zeta Plus™ BC Series Filter Capsules with LP Series Media are designed for manufacturing of biological products such as blood and blood products, vaccines, allergen extracts, and cellular harvests
  • Reduced potential of 1,3 Beta-glucan interference in product endotoxin testing
  • BC25 Laboratory capsules contain same media as in production scale systems
  • Full range of scalable single-use cartridges enables predictable performance from the laboratory to commercial production

Product specifications

Industries
Industries

Biopharmaceutical manufacturing

Brand
Brand

Zeta Plus™

Overall Diameter (Imperial)
Overall Diameter (Imperial)

2.63

Filter Technology
Filter Technology

Adsorbent

Overall Diameter (Metric)
Overall Diameter (Metric)

66.8

End Modification
End Modification

Sanitary Fitting

Grade
Grade

50LP

Filter Type
Filter Type

Depth

Product Series
Product Series

BC

Application
Application

Harvest and clarification
