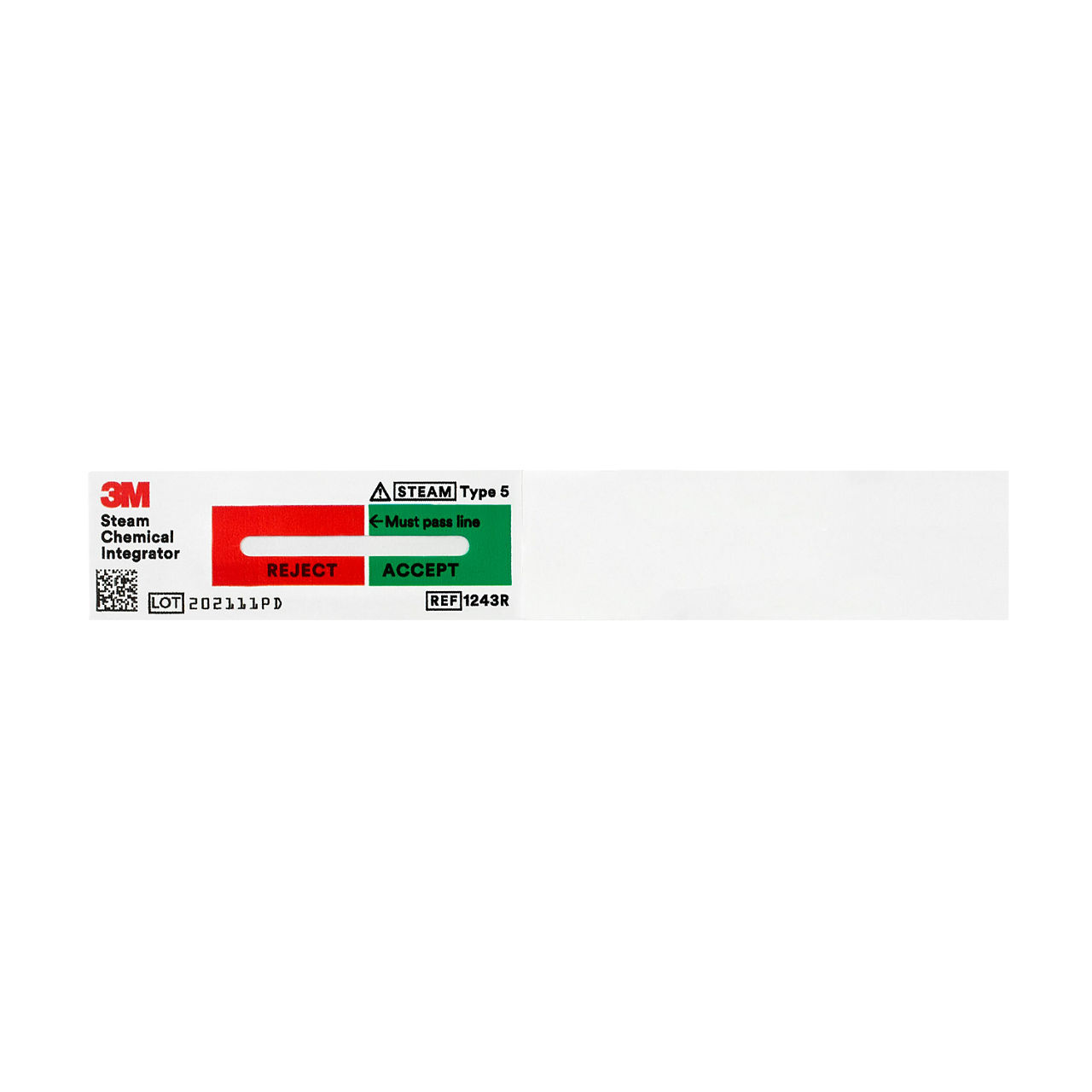

3M™ Attest™ Steam Chemical Integrator w/Ext, 1243RES, Type 5, 3/4 x 4 in(1.9 x 10.16 cm), 500/BAG, 2 BAG/CS, 1000/CS

Hover over image to zoom

3M™ Attest™ Steam Chemical Integrator w/Ext, 1243RES, Type 5, 3/4 x 4 in(1.9 x 10.16 cm), 500/BAG, 2 BAG/CS, 1000/CS

About the product

The 3M™ Attest™ Steam Chemical Integrator with Extender, 1243RE/1243RES, is an ISO 11140-1:2014 Type 5 integrating indicator for use in determining whether the sterilization process conditions were met inside each pack. This Type 5 Chemical Integrator monitors time, temperature and steam and provides fast and easy to read results. It includes an extender strip handle that serves as a handle to retrieve processed integrators from inner packs.

Details

View other product options
  • Overall Width (Imperial) : 0.7500
  • Overall Length (Imperial) : 4.0000
  • Overall Length (Metric) : 10.1600
  • Overall Width (Metric) : 1.9000
  • Brand : Attest™
Contact us

Product Details

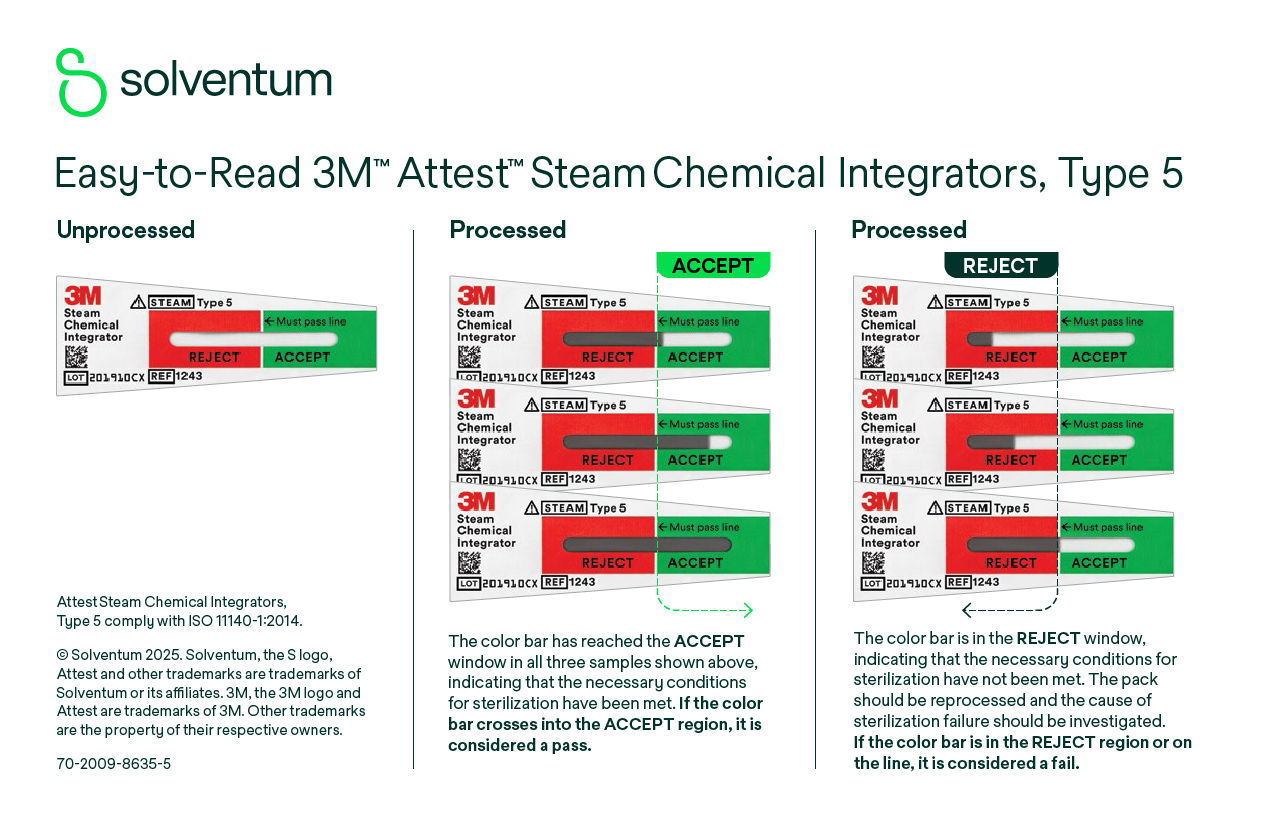

As an internal pack monitor for steam sterilization compliant with ISO 11140-1:2014, the 3M™ Attest™ Steam Chemical Integrator with Extender, 1243RE/1243RES, Type 5, uses moving front ink technology with vibrant “ACCEPT" (green) and “REJECT" (red) zones for easy interpretation within seconds that indicate whether the process conditions necessary for sterilization were met inside each pack.

On the front of the integrator, you’ll find a scannable 2-D barcode containing the lot code and expiration date for entry into tracking systems. A red 3M logo on white background on the back of the integrator makes it easy to find when flipped over on the tray. This Type 5 chemical integrator also features an extender that allows for quick and easy retrieval from a surgical tray. It is designed to correspond with biological indicators at three different time/temperature relationships.

Reference the instructions for usefor the applicable cycles in the U.S. Each pack has a shelf life of three (3) years.

  • Easy interpretation within seconds using moving front ink technology with vibrant “ACCEPT" (green) and “REJECT" (red) zones
  • Features an extender to make it easier to find in the surgical tray
  • ISO 11140-1:2014 Type 5 Integrating Indicator
  • For use in all 121-135°C (250 - 275°F) steam sterilization processes
  • Easy to find red and white backing when flipped over in a tray
  • Enhanced efficiency with a scannable 2-D barcode to upload lot code and expiration date information to your hospital’s instrument tracking system

Product Specifications

Brand
Brand

Attest™

Overall Length (Imperial)
Overall Length (Imperial)

4.0000

Overall Width (Metric)
Overall Width (Metric)

1.9000

Overall Length (Metric)
Overall Length (Metric)

10.1600

Overall Width (Imperial)
Overall Width (Imperial)

0.7500

Sterilization
